Browse our library of technical manuals covering axles, carriers, differentials, and drivetrain components from manufacturers including AxleTech, Meritor, Kessler, Sisu, and more. Each manual includes detailed parts breakdowns, specifications, and assembly diagrams to help you identify exactly what you need.
Filter by OEM: All | AxleTech/Meritor | Rockwell | Sisu

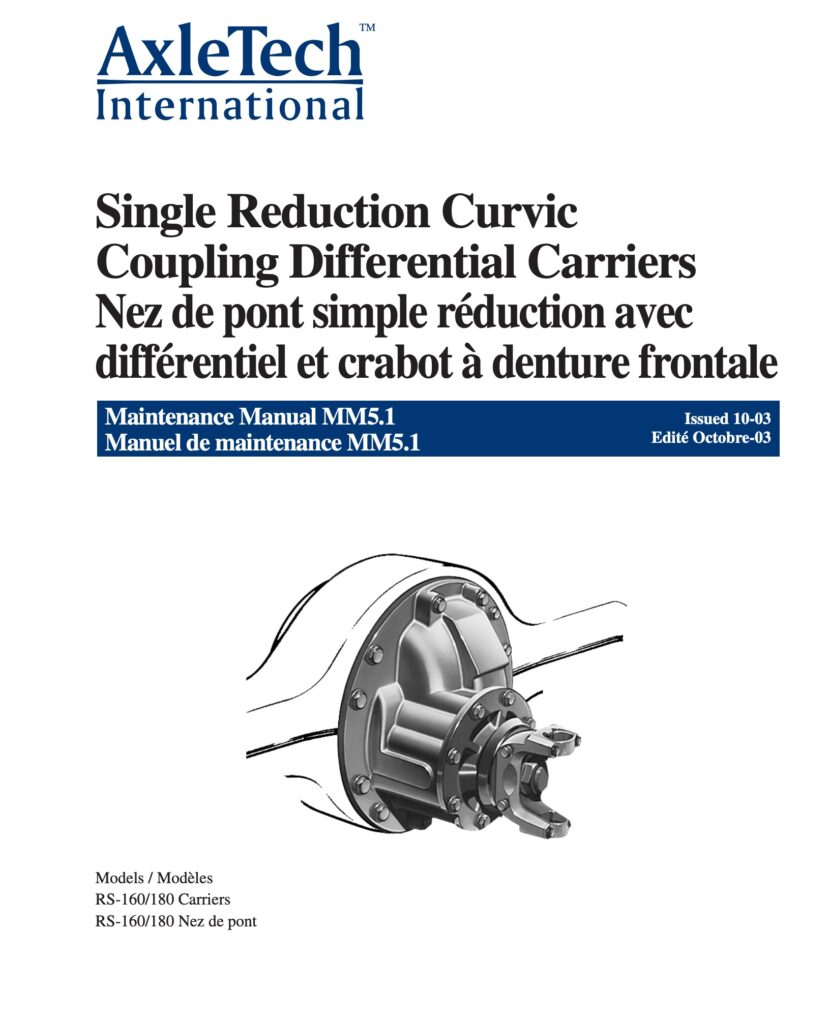

This maintenance manual (MM5.1) provides comprehensive service and repair procedures for AxleTech Single Reduction Curvic Coupling Differential Carriers, specifically models RS-160 and RS-180. These carriers are equipped with a Driver-Controlled Main Differential Lock (DCDL), which uses a hydraulic shift assembly to lock the axle shafts together, eliminating differential action for improved traction . 1. Technical …
Free

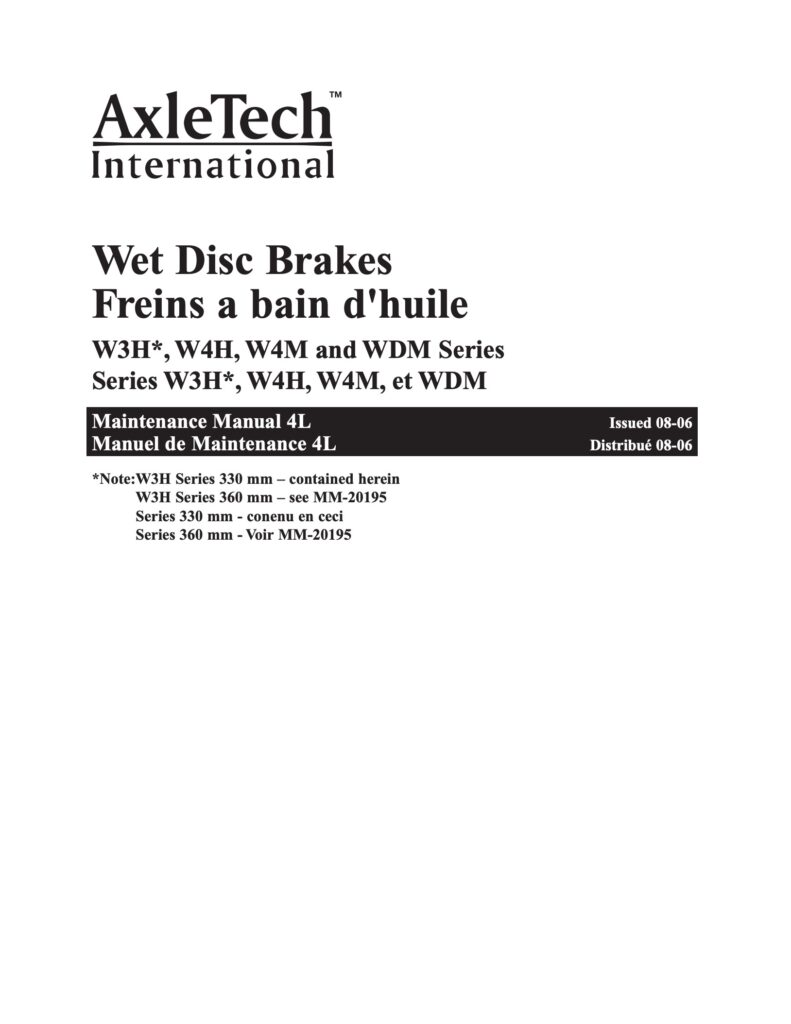

This maintenance manual provides detailed instructions for the service and repair of AxleTech International W3H, W4H, W4M, and WDM Series Wet Disc Brakes. These brakes are available in diameters of 330 mm (13 inch), 360 mm (14.2 inch), and 432 mm (17 inch). Brake Types and Identification Cooling and Fluid Maintenance The brakes utilize either …
Free

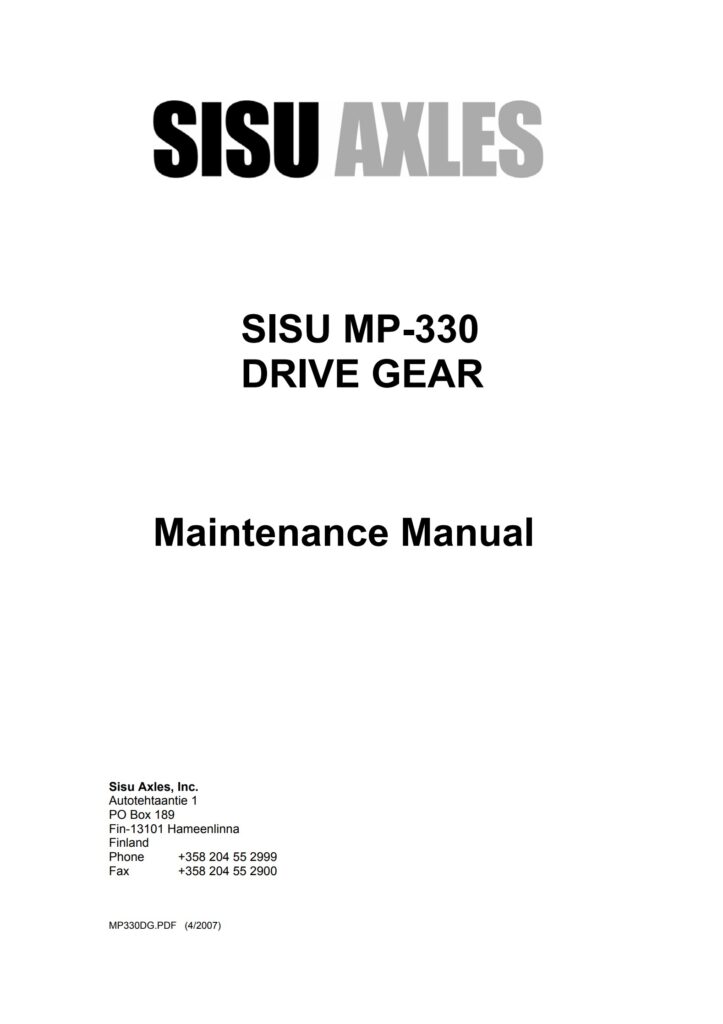

This maintenance manual provides repair and service instructions for the SISU MP-330 Drive Gear, used in heavy through-drive axles such as the FRMP-13/16 and FSMP-14 series. The manual covers disassembly, assembly, and critical technical adjustments for differential carriers and inter-axle components. Carrier and Differential Service Critical Adjustments Lubrication and Maintenance Technical Specifications Summary Component Torque …
Free

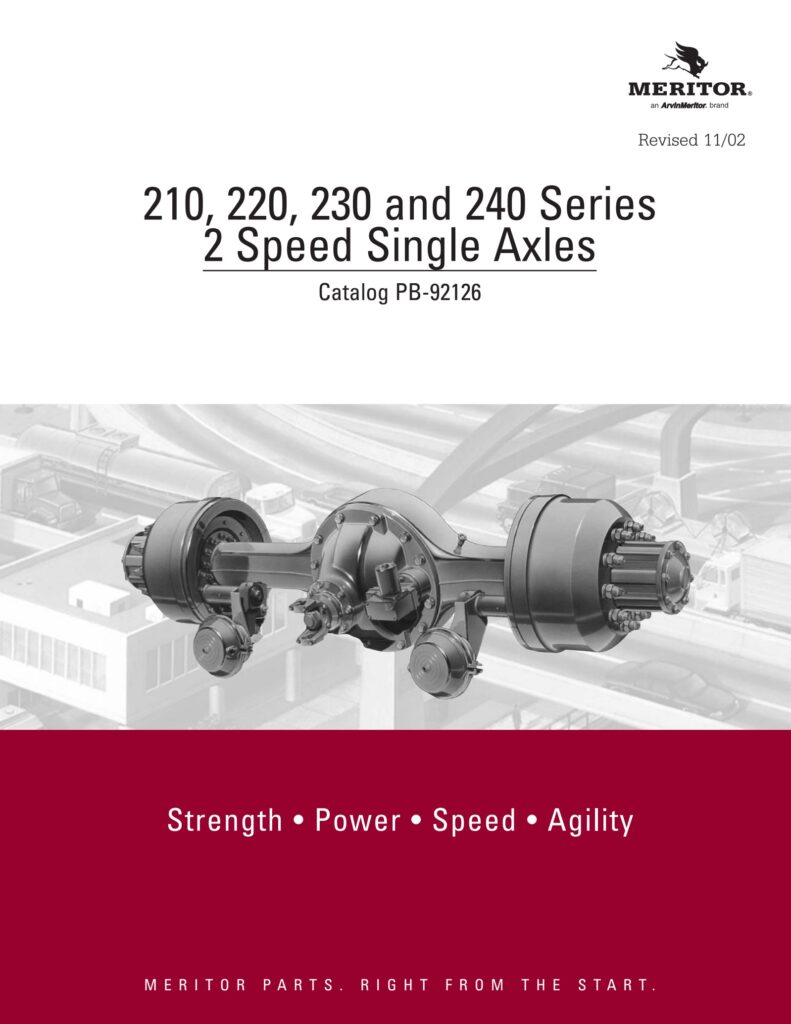

This catalog, PB-92126, covers the 210, 220, 230, and 240 Series 2 Speed Single Axles. Covered Carriers and Catalog Use Table of Contents HighlightsThe catalog includes the following sections: Axle Model DesignationsModel numbers, such as RS 23-240, are broken down as follows:
Free
This Meritor technical instruction manual (TP-96181) provides guidelines for identifying and adjusting gear tooth contact patterns and backlash for Generoid and conventional hypoid and Amboid gearsets used in Meritor drive axles. 1. Identifying Gearset Types Proper identification is critical because Generoid and conventional gears require different contact patterns and locations. 2. Backlash Settings Meritor provides …
Free
This document, AxleTech™ International Maintenance Manual No. 9E, covers maintenance and service procedures for AxleTech covered planetary spider design wheel end assemblies. It was issued in July 1999. Covered Axle Models:The manual lists several models, including Rigid Axles, Tandem and Tridem Axles, and Steering Axles: Planetary Axle Description:AxleTech’s covered spider design planetary axles feature a …
Free
