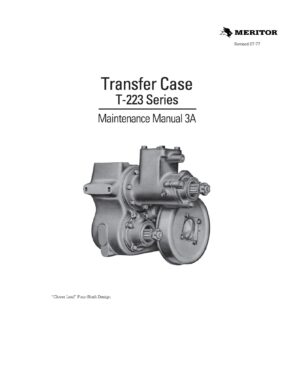

Meritor Transfer Case T-223 Maintenance Manual
This maintenance manual provides comprehensive instructions for the service, repair, and overhaul of the Meritor T-223 Series Transfer Case. The T-223 is a single-speed, three-shaft unit designed for heavy-duty applications, featuring an optional front-axle declutch mechanism.
1. Core Component Specifications
Successful assembly and maintenance depend on adhering to specific technical tolerances:
- Input and Output Shafts: The T-223 uses a three-shaft design consisting of an input shaft, an intermediate shaft, and an output shaft.
- Declutch Mechanism: Includes a shift fork, shift shaft, and a sliding clutch collar used to engage or disengage the front drive axle.
- Sealing: Use only Meritor-approved RTV silicone gasket material for housing joints to prevent leaks and contamination.
2. Key Maintenance Procedures
- Disassembly: The manual outlines a structured process starting with the removal of external components such as yokes and the declutch housing before splitting the main housing halves.
- Bearing Preload Adjustment: Critical for gear longevity, bearing preload is adjusted using shims located under the bearing covers.
- Cleaning and Inspection: All metal parts must be cleaned with a safe solvent (e.g., kerosene or diesel fuel) and inspected for signs of pitting, scoring, or excessive wear on gear teeth and bearing surfaces.
3. Safety and Operational Guidelines
- Towing: If the vehicle must be towed, the drivelines should be removed or the transfer case shifted into neutral (if equipped with a neutral position) to prevent internal damage from high-speed rotation without proper lubrication.
- Lubrication: Use only high-quality gear oil meeting Meritor Specification O-76-A or O-76-B (API GL-5).
- Oil Change Intervals: For normal operations, change the oil every 12 months or 100,000 miles, whichever comes first.
