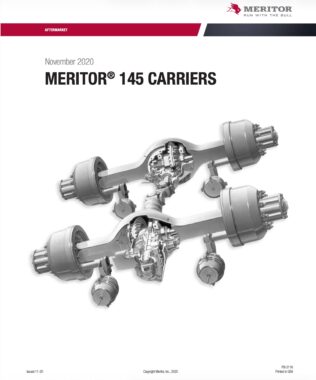

Meritor 145 Carriers Parts Catalog
This aftermarket parts catalog provides a comprehensive guide for Meritor 145 Carriers. It includes detailed nomenclature, exploded parts diagrams, and numerical listings for various carrier configurations.
Product Line Overview
The catalog covers three primary 145 carrier types:
- Forward 145 Carriers: Includes assemblies with or without oil pumps and options for Inter-Axle Differential Lock (IADL) and Driver Controlled Differential Lock (DCDL).
- Single/Rear 145 Amboid Carriers: Features 22k weight class specifications and specific amboid pinion assemblies.
- Single/Rear 145 Hypoid Carriers: Offers standard and 22k weight class versions with screw-in or bolt-on differential locks.
Component Detailed Coverage
Each section provides part numbers, descriptions, and quantities for major sub-assemblies:
- Carrier and Leg Caps: Main housing assemblies and hardware.
- Input Shaft & Thru-Shaft: Shafts, bearing cones, and air shift assemblies.
- Pinion Assemblies: Pinion gears, bearing cups, and shim packs for precise adjustment.
- Main Differentials: Case and nest assemblies covering a wide range of gear ratios from 2.28 to 7.17.
- Differential Locks: Specialized components for DCDL, including shift forks, springs, and lock switches.
Support and Resources
Meritor provides several tools for parts identification and procurement:
- Numerical Listing: A 3-page index for cross-referencing Meritor part numbers to specific catalog pages.
- Technical References: Directs users to the Drive Axle Identification Guide (PH-18102) and Axle Specifications (TP-7824).
